Merkmale:
- Leistungsstarke Aufnahme- und Wiedergabelösung, die mit der neuesten Broadcast-Technologie ausgestattet ist
- Verfügt über 12G-SDI-Ausgänge für Fill- und Key-Playback, 12G-SDI-Capture und 10G-Ethernet
- 6 Tasten und einen Drehknopf für Menü und Einstellungen
- Integriertes 2,2" Farbdisplay
Formate:
- SD: 525i/59.94 NTSC, 625i/50 PAL
- HD: 720p/50, 59.94, 60; 1080i/50, 59.94, 60; 1080p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UltraHD: 2160p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- 4K: 4Kp/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 DCI
Eingänge:
- 1x 12G/6G/3G/HD/SD-SDI (16 Kanal)
- 1x HDMI 2.0 (8-Kanal)
- 1x RS-422 (Sony kompatibel)

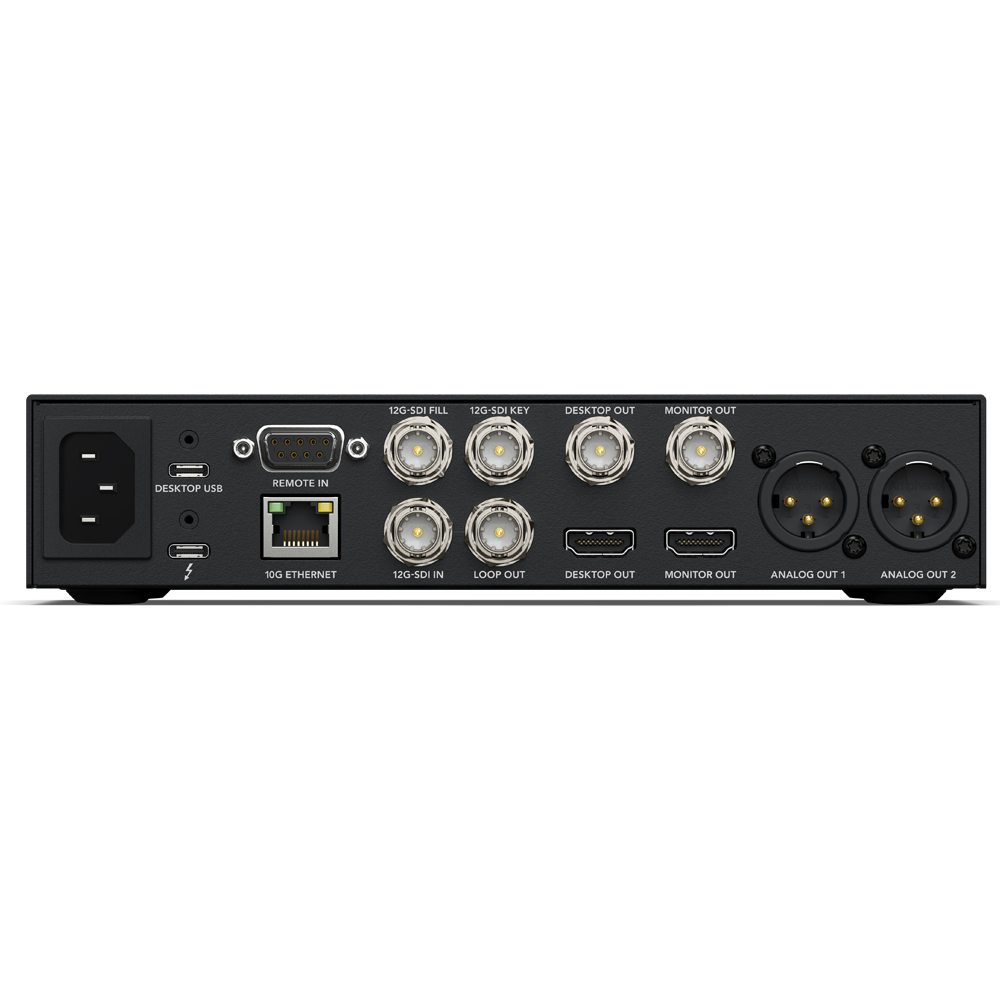

Ausgänge:
- 1x 12G/6G/3G/HD/SD-SDI (Loop)
- 1x 12G/6G/3G/HD/SD-SDI (Fill)
- 1x 12G/6G/3G/HD/SD-SDI (Key)
- 1x SDI Extended Desktop
- 1x SDI Extended Monitor
- 1x HDMI Extended Desktop
- 1x HDMI Extended Monitor
- 2x XLR 3-Pol (Analog Audio)
- 1x 6,35 mm Klinke (Kopfhörer)
Weitere Anschlüsse:
- 1x 10G Ethernet 2110 IP (RJ-45)
- 1x USB-C 3.1
- 1x ThunderBolt 3.0
- 1x 12 V DC (Hohlstecker)
- 1x Kaltgeräteanschluss
Allgemeines:
- Stromversogung: 100 - 240V AC50/60Hz
- Abmessungen (LxHxT): 210 x 44,2 x 228 mm
- Gewicht: 1,3 Kg
Lieferumfang:

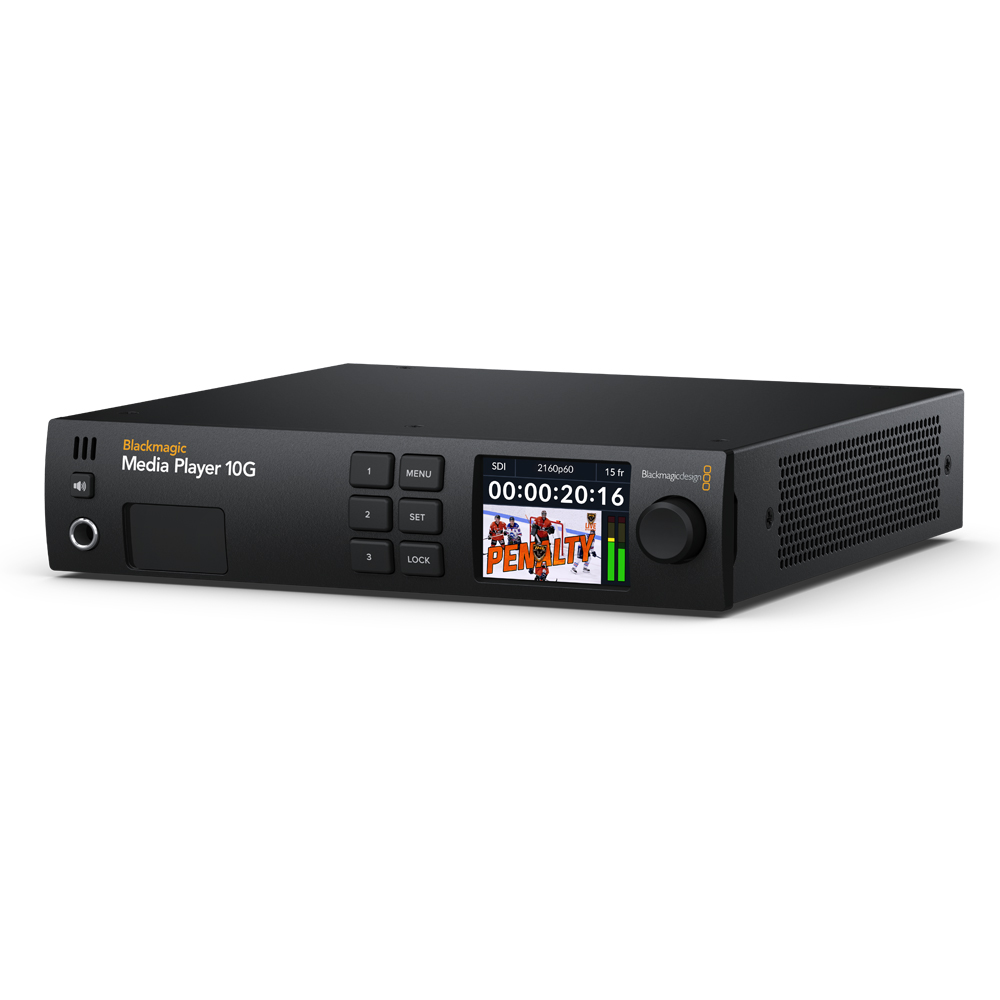

- 1x Media Player 10G
- 1x Startermappe mit QR-Code zum Download der Software
